Original And Used Yamaha YG12F SMT Pick Place Machine 20000CPH

Yamaha YG12F Pick and Place Machine 20,000CPH Original And Used

Based on Yamaha's YS12F model designed as a compact, high-speed, space-efficient low priced surface mounter, the new YG12F has been developed as a model to function with a conventional pneumatic tape feeder. It achieves a high level of component applicability with the capacity to mount large electronic components of 0402 - 45mm, compatibility with the 15-pallet automatic tray stacker, "ATS15," a recognition function for ball-type electrode components, and the capacity to mount components with a height of 15mm or less. It also achieves a high-level balance of high-speed mounting with a throughput of 20,000CPH, space economy, and low price to provide excellent cost performance.

Features:

• Combines good component mounting capability with a throughput of 20,000 CPH (Yamaha optimized conditions) and outstanding component applicability with the capacity to mount electric/electronic components of 0402 - □45mm size and with a height of 15mm.
• Recognition and mounting of ball-type electrode components including BGA/CSP and special connectors by means of sidelight (option) and rear-side multi-camera (option).

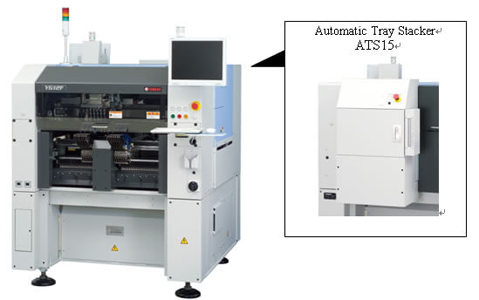

• Choice of optional manual tray or automatic tray stacker, "ATS15."
• Improved space economy and operational efficiency with the capacity to process large printed circuit boards of up to L510mm×W460mm despite the compact platform size (L1,254×W1,440mm).
• Multiple Accuracy Compensation System (MACS) adopted: A system to compensate for factors causing changes in the accuracy in both mixed and multilevel ways in order to guarantee a consistent mounting accuracy range of ±0.05mm.
• Maintains the basic functions and performance of the base model YS12F, including outstanding space efficiency, high-speed mounting and optical image recognition device, etc. Furthermore, many auxiliary equipment options are available.

Specifications:

Yamaha YG12F SMT Pick Place Machine

SMT Pick Place Machine 20000CPH

Yamaha YG12F SMT Placement Machine
