75000CPH Optimum Speed Panasonic NPM-W2S SMT Pick Place Machine

Panasonic NPM-W2S Pick and Place Machine 75000 CPH Optimum Speed, Best conditions original and used SMT mounters

Infinite Automation has a big quantity of stock SMT manufacturing related equipment. Among our featured machines are original and used Panasonic NPM W2S Pick and Place Machine. Infinite Automation has experienced Engineers and Technical Teal that ensures that all of the machines that we are offering undergo rigid machine testing and reconditioning, and quality assurance. Infinite Automation is a trusted China supplier of best-conditioned pre-owned factory automation machines and production line equipment. Contact our Sales and Customer Support Team for inquiries.

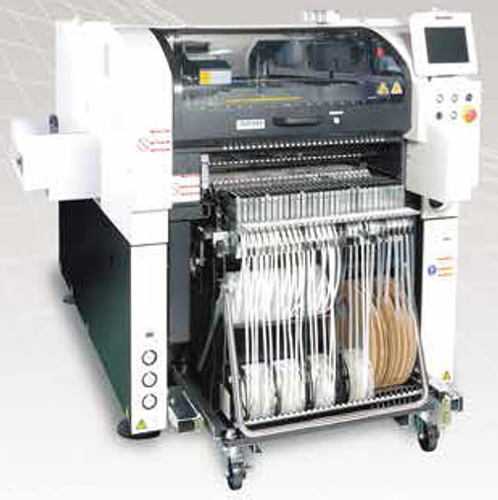

Panasonic NPM W2S Pick and Place Machine can be directly connected to NPM-W2 machine and support single and dual lane transport. Panasonic NPM W2S Pick and Place Machine optimum speed is up to 75000CPH. Applicable with up to 750mm x 550mm PCB size and with 120 feeder capacity.

Panasonic NPM W2S Pick and Place Machine

Max PCB: L 750 x W 550

Placing Speed: 75000CPH

Max Feeder: 120 reels

Weight: 2390 kg

Features:

• Panasonic NPM W2S Pick and Place Machine
• Directly connectable to NPM-W2
• Support for single-/dual-lane transport
• Selection of the mounting head according to production form
• Selectable from Lightweight16-/12-/Lightweight8-/3-nozzle head V2
• Mutual compatibility with NPM series
• Shared use of the placement head/nozzle, tape feeder, and feeder cart
• *For details, contact our sales representative.
• Adoption of 3-nozzle head V2
• Capable of a max placement load of 100N.

Specifications:

Placement head		Lightweight 16-nozzle head	12-nozzle head	Lightweight 8-nozzle head	3-nozzle head V2
Max. speed		38 500cph (0.094 s/ chip)	32 250cph (0.112 s/chip)	20 800cph (0.173 s/ chip)	8 320cph (0.433 s/ chip) 6 500cph (0.554 s/ QFP)
Placement accuracy (Cpk1)		±30 μm / chip (±25μm / chip *6)	±30 μm / chip	± 30 µm/chip ± 30 µm/QFP 12mm to 32mm ± 50 µm/QFP 12mm Under	± 30 µm/QFP
Component dimensions (mm)		03015*7 *8/0402*7 chip ~ L 6 x W 6 x T 3	0402*7 chip ~ L 12 x W 12 x T 6.5	0402*7 chip ~ L 32 x W 32 x T 12	0603 chip to L 150 x W 25 (diagonal152) x T 30
Component supply	Taping	Tape : 4 / 8 / 12 / 16 / 24 / 32 / 44 / 56 mm		Tape : 4 to 56 mm	Tape : 4 to 56 / 72 / 88 / 104 mm
		Max.120 (Tape: 4, 8 mm, Small real)		Front/rear feeder cart specifications : Max.120 ( Tape width and feeder are subject to the conditions on the left) Single tray specifications: Max.86 ( Tape width and feeder are subject to the conditions on the left) Twin tray specifications: Max.60 ( Tape width and feeder are subject to the conditions on the left)
	Stick	-		Front/rear feeder cart specifications : Max.15 (Single stick feeder) Single tray specifications : Max.15 (Single stick feeder) Twin tray specifications : Max.15 (Single stick feeder)
	Tray	-		Single tray specifications: Max.20 Twin tray specifications: Max.40

*1: Please consult us separately should you connect it to NPM-D3/D2/D. It cannot be connected to NPM-TT and NPM.

*2: Only for the main body

*3: 1 880 mm in width if extension conveyors (300 mm) are placed on both sides.

*4: Dimension D including tray feeder: 2 618 mm, Dimension D including feeder cart: 2 513 mm

*5: Excluding the monitor, signal tower, and ceiling fan cover.

*6: ±25 μm placement support option. (Under conditions specified by PSFS)

*7: The 03015/0402 chip requires a specific nozzle/feeder.

*8: Support for 03015 mm chip placement is optional.

(Under conditions specified by PSFS, Placement accuracy: ±30 μm/ chip)

* Placement tact time, inspection time, and accuracy values may differ slightly depending on conditions

* Please refer to the specification booklet for details

Panasonic NPM-W2S SMT Pick Place Machine

75000CPH SMT Pick Place Machine

Panasonic NPM-W2S SMT Mounter

75000CPH Optimum Speed Panasonic NPM-W2S SMT Pick Place Machine Images
